Explosive Transport Boxes 800mm High – Certified (2275-402)

Add to Quote

Specs

  • AVAILABLE HEIGHTS: 600mm, 800mm (nominal)
  • MATERIAL: ?
  • FINISH: ?
  • CERTIFICATION: ?

Downloads



CAD Drawing (PDF) 2275-402 General Dimensions

Download

2275-402 800mm HIGH EXPLOSIVE BOX R1 - GA

CAD Drawing (PDF) 2275-403 General Dimensions

Download

2275-403 600mm HIGH EXPLOSIVE BOX-GA

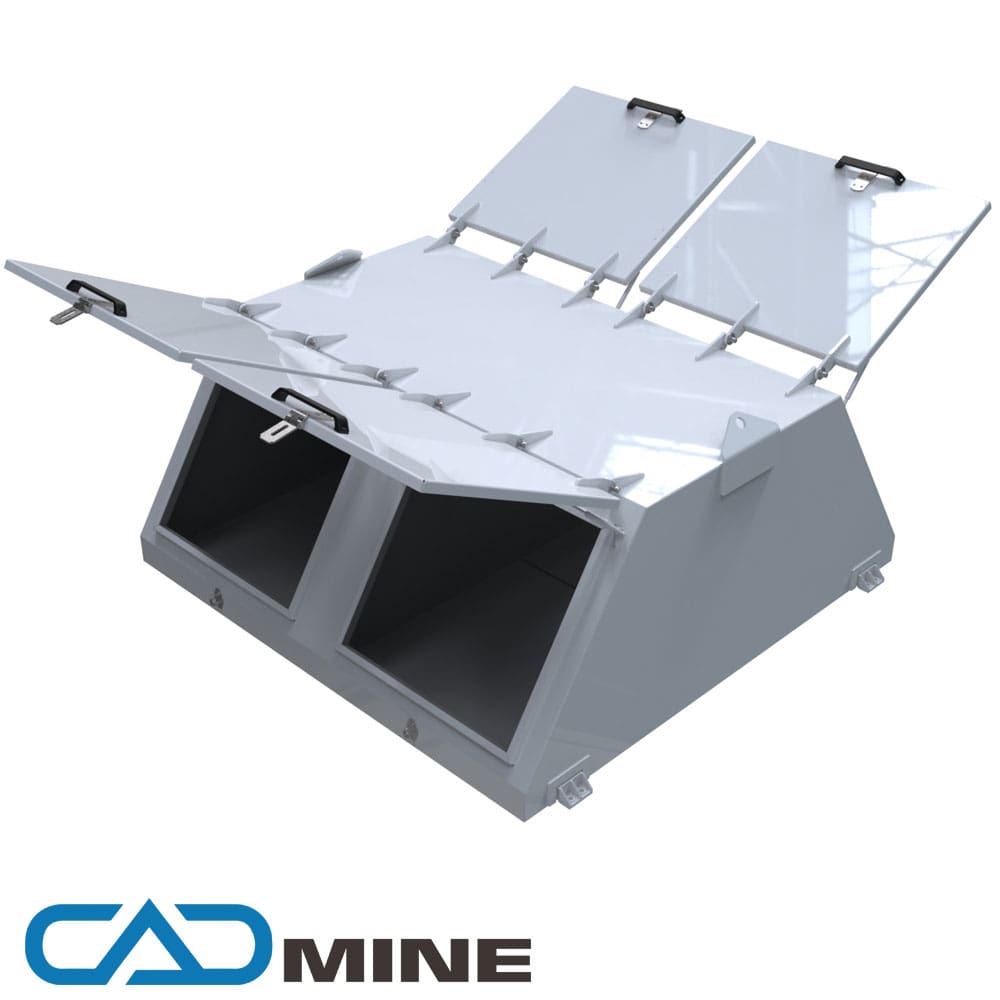

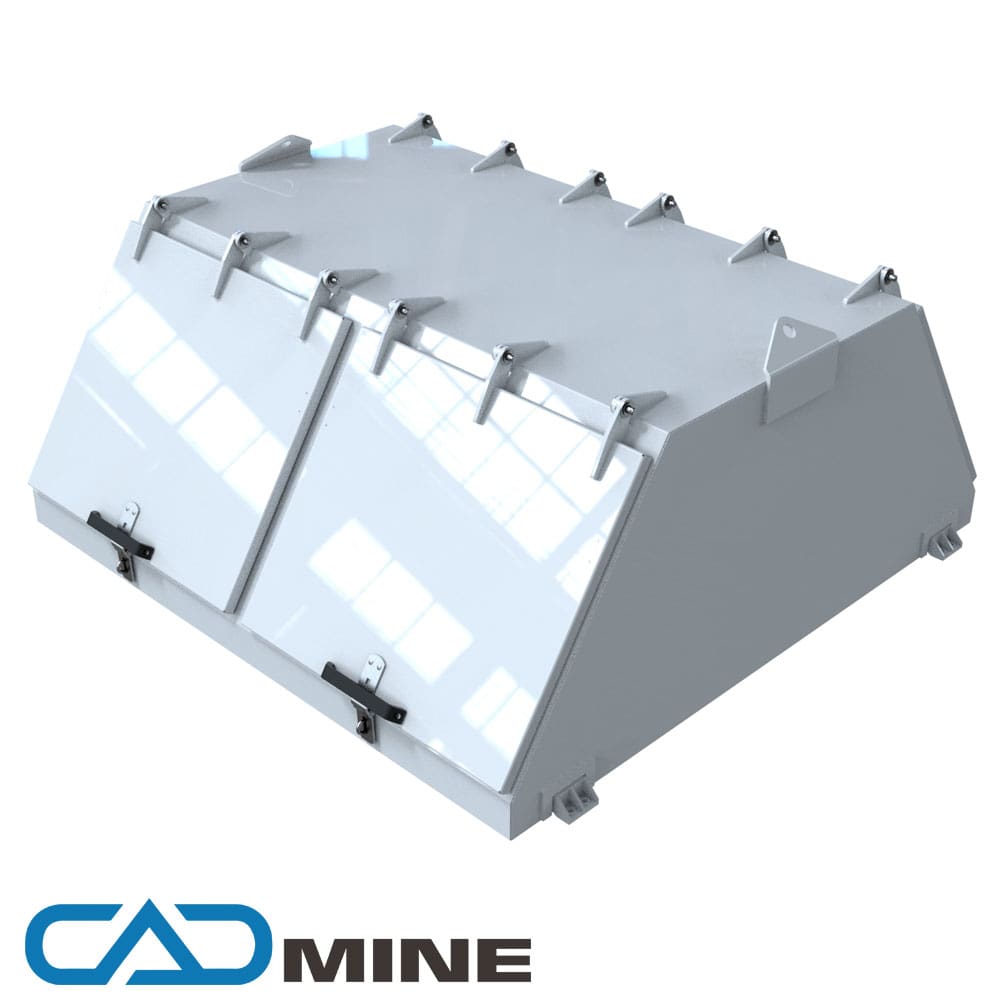

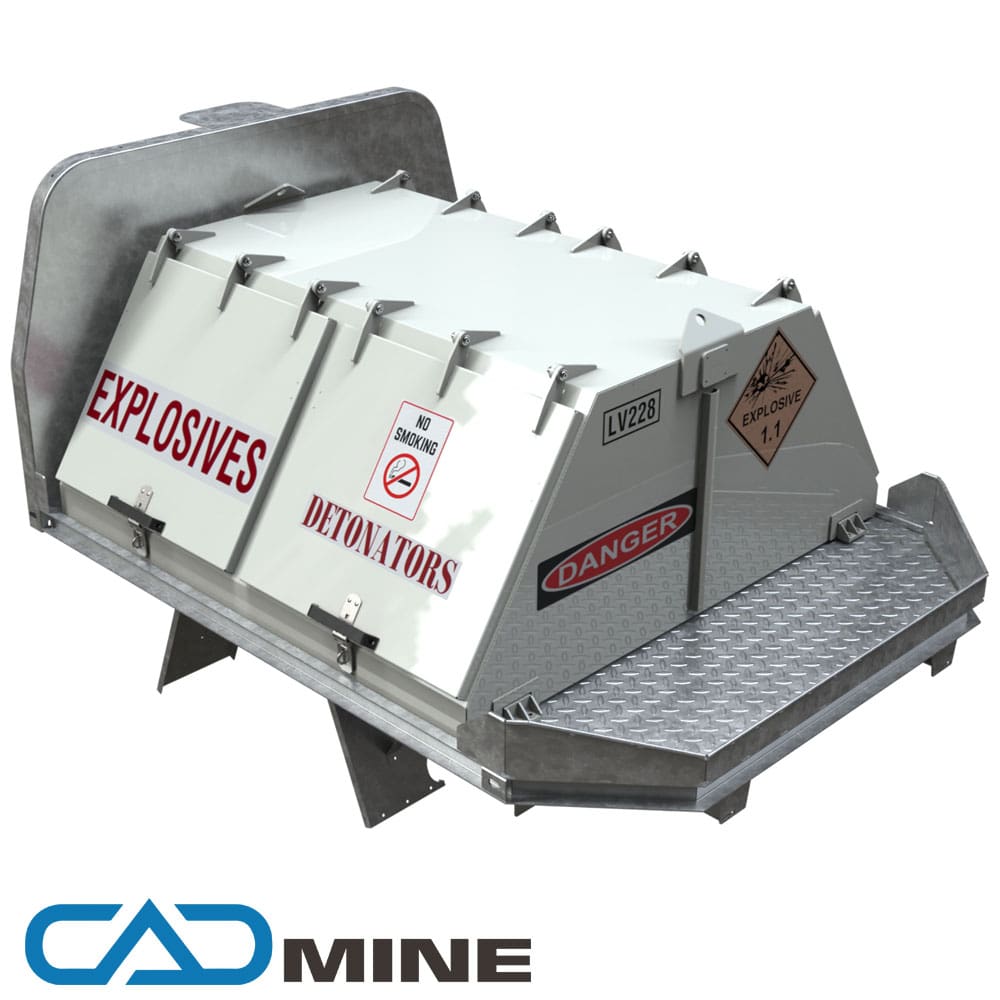

Cadmine’s Lockable Explosive Transport Boxes are meticulously engineered to meet all requirements for Category 2 mixed loads of explosives as outlined in the Australian Code for the Transport of Explosives by Road and Rail- Third Edition (2009) (Section 7.3.2). These boxes offer a secure and compliant solution for explosive transport on certified light vehicle trays. Featuring three separate internal compartments, the design ensures the necessary segregation of detonators Class (1.1B) and Explosives Class (1.1D).

These boxes are constructed with a maximum working load limit of 500KG for explosives and 20KG for detonators, ensuring safe and efficient operations. The internal structure consists of approved 70mm hardwood, securely fixed to a 3mm plate, eliminating any potential for incendiary sparks.

Additional information

Weight 272 kg
Dimensions 190 × 183 × 85 cm
Product

Explosive Boxes
