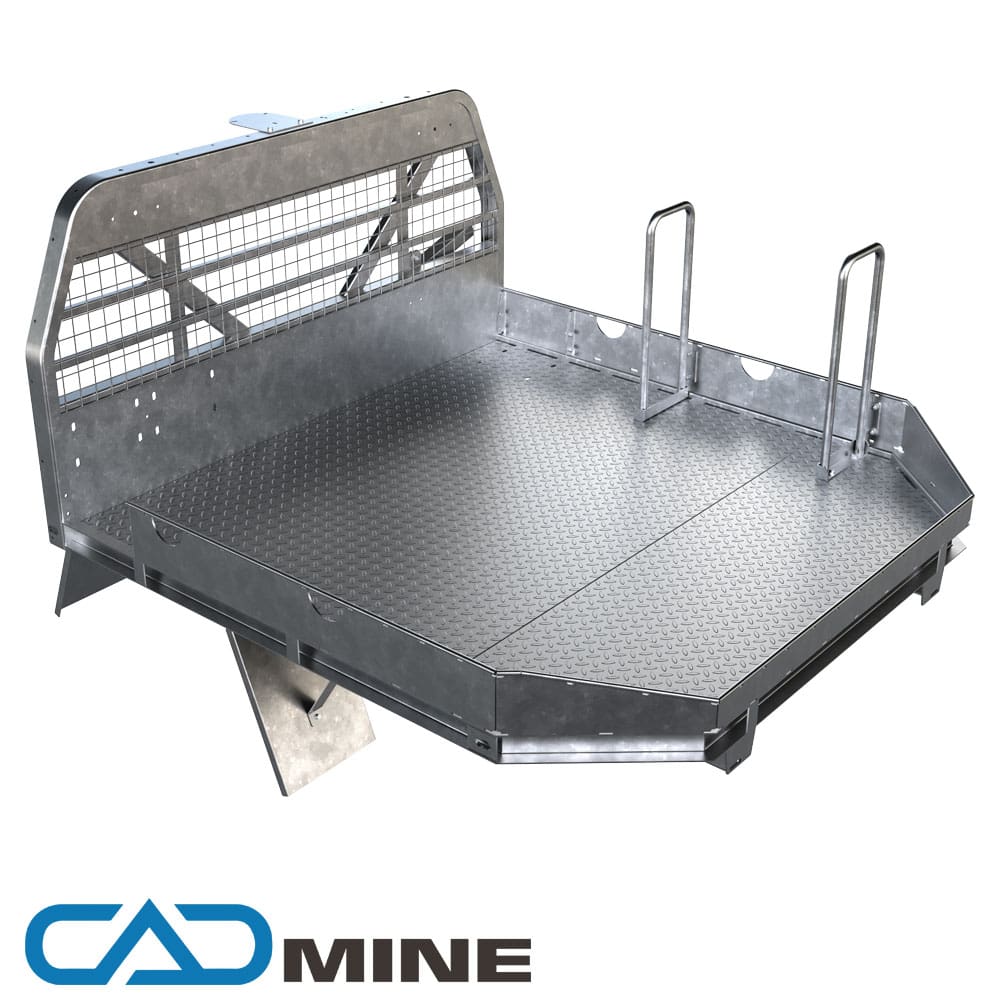

Toyota Hilux Dual Cab Tray ex VIETNAM – (2275-266VNTP)

Add to Quote

Specs

  • AVAILABLE SIZES: 1949mmL x 1870mmW
  • MATERIAL: Hot Dipped Galvanized Steel
  • FINISH: Powder Coat (white)
  • CERTIFICATION: ROPS certified – compliant to ISO 3471:2008

Downloads



CAD Drawing (PDF) 2275-266VNTP General Dimensions

Download

2275-266VNTP HILUX DUAL CAB TRAY EX VIETNAM- R1 - GA

The CADmine Light Vehicle underground Tray is compliant to ISO 3471:2008 and is ROPS certified. This product is meticulously engineered to withstand the demanding conditions of underground operations. This is achieved through the incorporation of an angled rear tray body, which is entirely hot-dipped galvanized for exceptional durability and resilience. This product suits a single cab left & Right-hand drive Toyota Landcruiser and Hilux. Other vehicle models also available.

The Cadmine Light Vehicle above ground tray range are a drop side configuration and have all the same qualities, certification and model range as the underground tray range.

In addition, these can come with Channel or Pipe headboard, they can also come in a galvanised finish or for a more aesthetically appealing look they can come powder coated white with a black under body coating.

Additional information

Weight 299 kg
Dimensions 195 × 187 × 107 cm
Product

Vehicle Trays
